MotorGuide Xi3 45 FW
$ 779.99
Sold Out| Model # 940700140
- FREE SHIPPING ON ALL MOTORS!
- GREAT CUSTOMER SERVICE!
- NO SALES TAX*
Quick Details

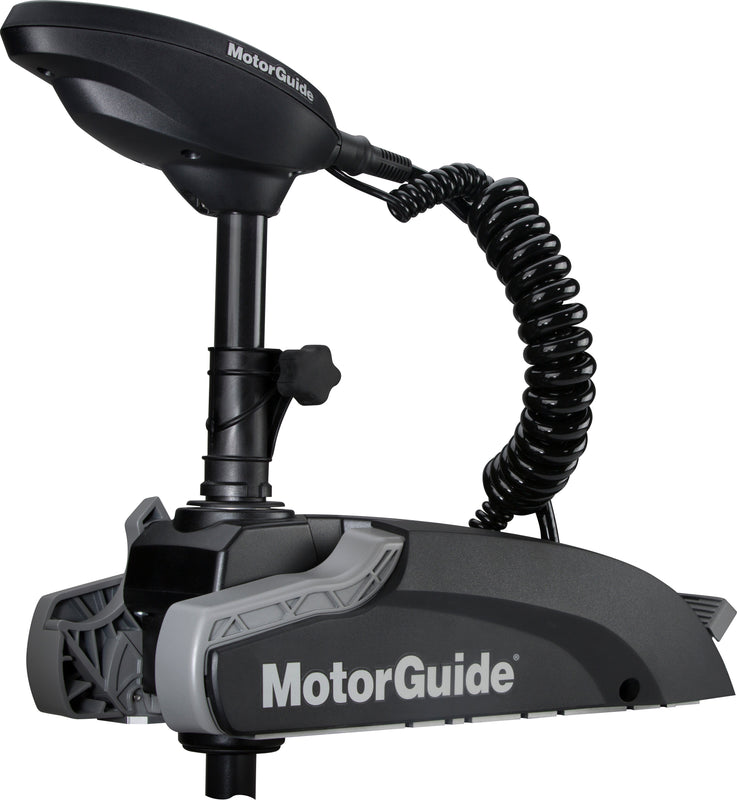

The MotorGuide Xi3 45 Freshwater is an exciting alternative to the Minn Kota PowerDrive series. The Xi3 FW offers advanced wireless features often found in much pricier trolling motors; all at an affordable price.
Notably, it offers some key improvements to current wireless offerings in this price range. First and foremost, all Xi3 motors feature wireless remote control right out of the box. Secondly, the Xi3 features the new SecureStep stow and deploy, which claims to be 50% easier to use than the PowerDrive. Third and finally, the Xi3 is the quietest electric steer motor in its class.
These are really great motors, offered with a standard remote for speed and steering. The Motorguide Xi3 is a welcome and competitive addition to entry-level electric-steer motors and gives Minn Kota a run for their money! Features Lowrance connectivity capability; composite shaft with lifetime warranty; aluminum double-anodized mount; digital power management; Machete III prop and a two year warranty. To learn more about trolling motor selection and installation, grab our FREE Trolling Motor Buyer's Guide.
Xi3 45 FW Full Details
Recommended for:
Small to medium sized freshwater v-hull, pontoon, jon and general fishing boats up to 21'. The 45 lbs thrust motor is recommended for boats weighing up to 2,000 lbs For more help picking the right thrust level - or to learn how much your boat weighs - please refer to our thrust guide.
How It's Unique
The Xi3 series is a significant step-up in innovation from the X3 Freshwater series. The X3 is controlled with a cable foot pedal, while the X3 offers the benefit of electric steering control, wireless operation via remote and foot pedal and sturdier shaft construction. Additionally, the X3 is available with thrust options of 45, 55 and 70 lbs.
Water Type:
Freshwater Only
Shaft Length(s):
The FW Xi3 45lb thrust motor is available in a 48" shaft. For help selecting a shaft length, please see our shaft guide.
Motor Features:
SecureStep Stow and Deploy, Composite Shaft, Machete III Three-Blade Prop. (Learn about these features)
Available Upgrades:
PinPoint GPS (requires a PinPoint GPS Upgrade Kit)
Mounting Details:
This motor is bolted directly to the bow of the boat using the included mounting hardware, and requires drilling into the boat for installation. Ideally, it's best to have access to the underside of the mounting platform in order to secure and fasten the bolting hardware. However, if accessing the underside is impossible you can use no access bolts to secure the motor from the top. If you wish to have the option to take the motor on and off your boat, you can also elect to purchase a MotorGuide Quick Release Plate. For more information see our compatibility and mounting guides.
Mount Dimensions:
Not Available
Bolting Pattern:
Not Available
Wiring Details:
Xi3 45 can be wired directly to the batteries, and can also be used in conjunction with a plug and receptacle for a cleaner, more professional installation that's easy to remove. To protect your motor from damage, a circuit breaker is highly recommended for installation.
Motor Voltage and Batteries:
The Xi3 45 is a 12 volt motor and requires (1) 12-volt marine battery. For more information, see our articles on battery selection or battery wiring diagrams.
Power Lead Length:
5 Feet
Pedal Cord Length:
Not Applicable
What Is Included:
- Xi3 45 trolling motor
- Wireless remote
- Power leads
- Mounting hardware
- Owners manual
What Else Is Required:
1 Marine Battery, Battery Charger, Circuit Breaker (Recommended)
Amperage Draw:
42 amps at maximum speed
Motor Run Time:
Important Note: As you likely won't be running your trolling motor perpetually, the actual amount of on-the-water time a motor should allow will be substantially longer than times listed. Actual motor run time can vary depending on conditions (winds, waves, etc) and the type of battery used. Listed below are run-time estimates assuming a 100 amp hour rated battery. To learn more, please see our article on calculating motor run time.
- 20 Hours: At slow, trolling speeds that draw 5 amps or less
- 4.8 Hours: Approx. run time with throttle 50% open
- 2.4 Hours: Approx. run time with the motor at full throttle
Stow and Deploy Method:
Xi3 motors feature the new SecureStep stow and deploy mechanism.
Motor Steering Method:
The MotorGuide Xi3 series motors are electric-steered via wireless remote.
Shaft Adjustment:
An adjustable depth collar makes it easy to set how deep the shaft and propeller sit in the water.
Motor Speed:
All MotorGuide Xi3 motors are variable speed. Learn more about fixed vs. variable speed motors.
Owners Manual:
Warranty Period:
Two Years
Warranty Details:
MotorGuide motors carry a 2 year warranty against manufacture defects and a lifetime warranty on shafts, all supported by hundreds of local MotorGuide service centers across the country.
Box Dimensions:
Box dimensions and weight vary by motor:
